Key Benefits

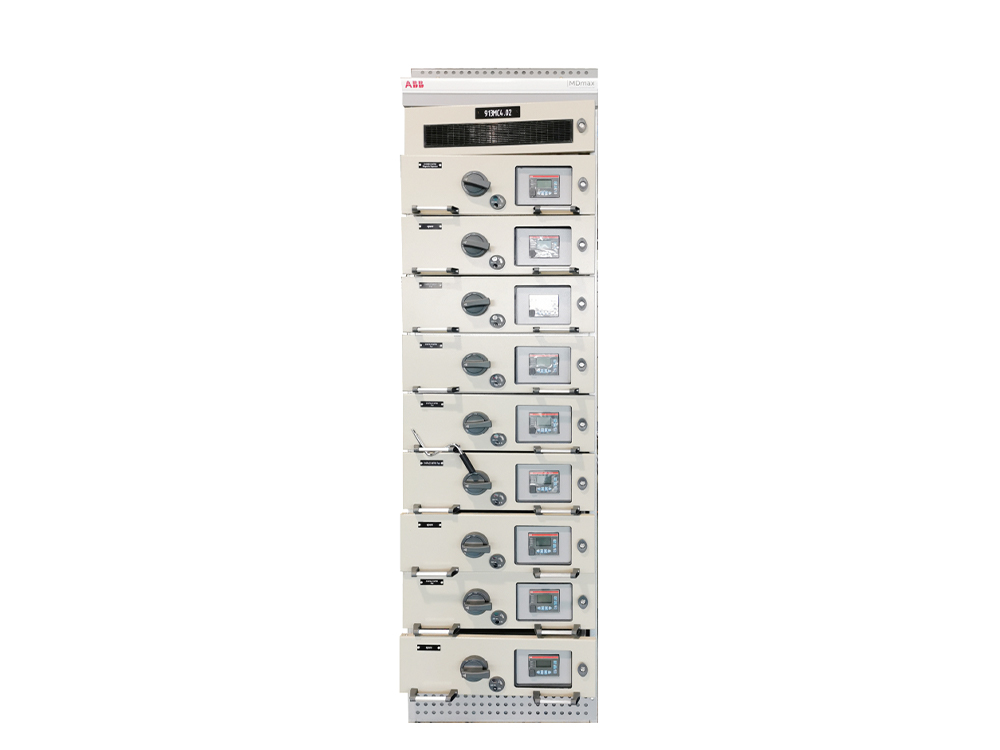

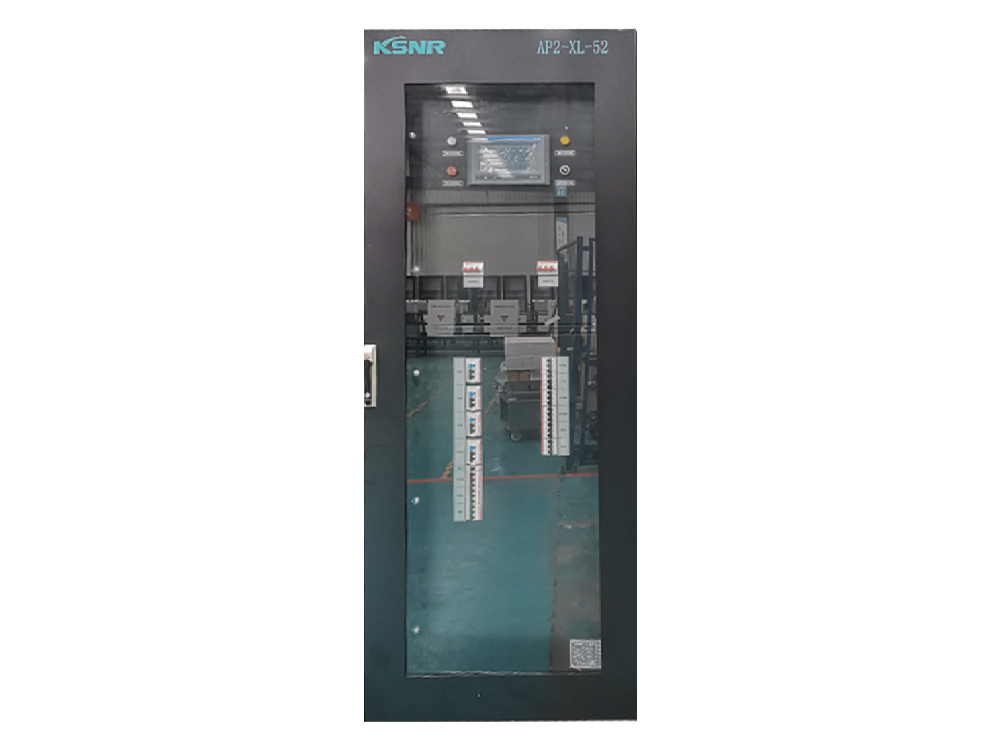

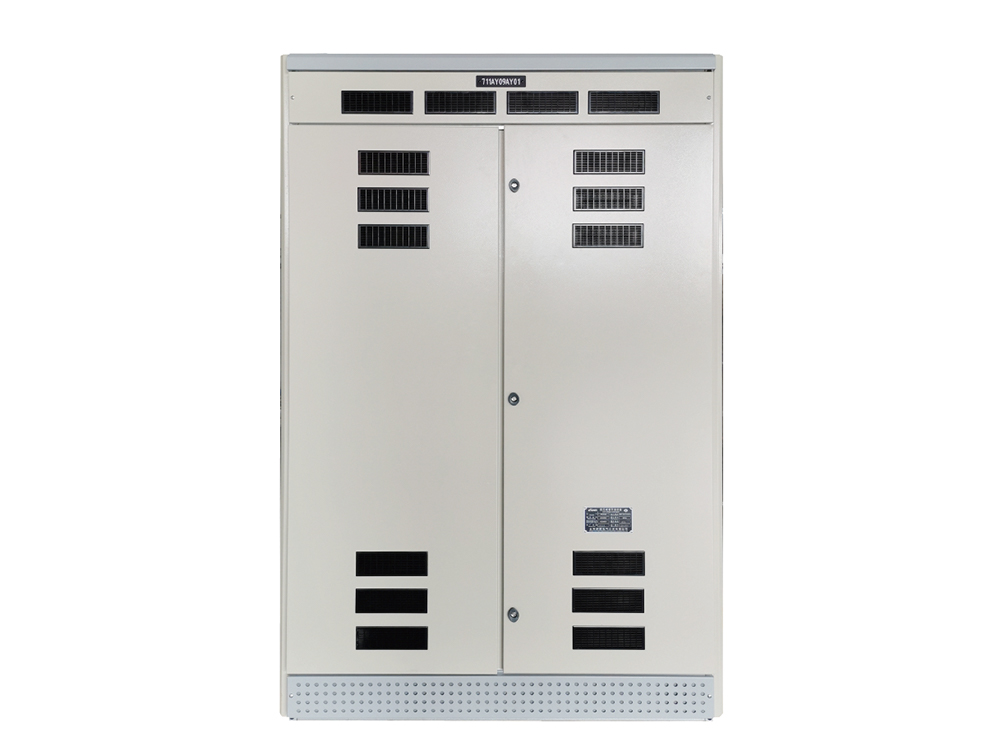

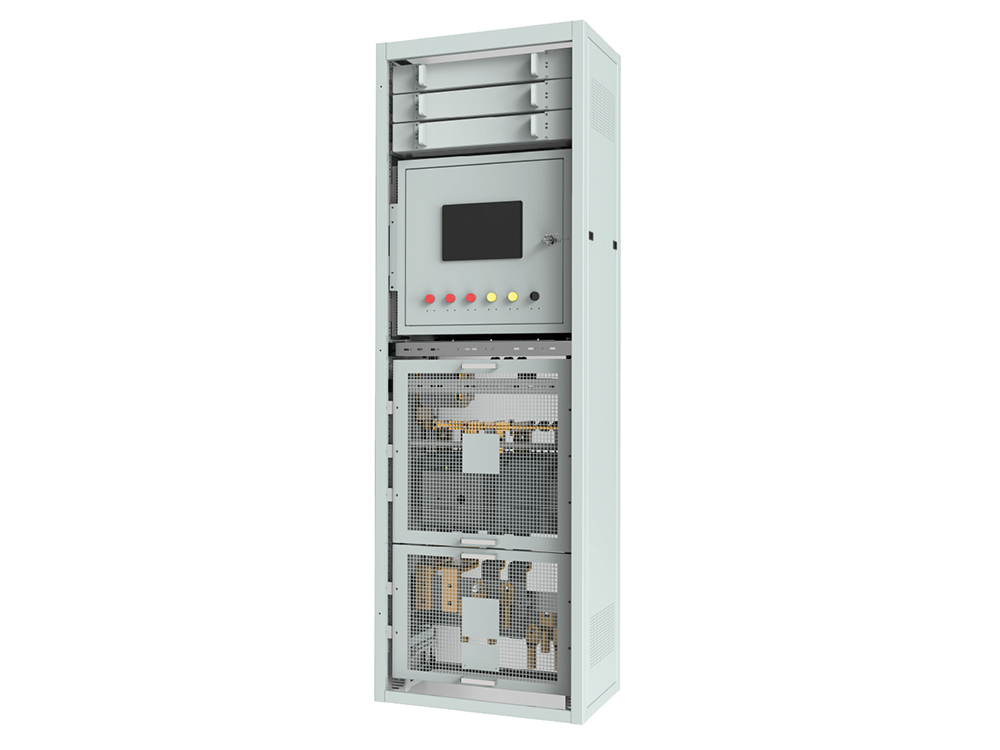

This PV Low-Voltage Switchgear Cabinet is a centralized power distribution and protection unit designed specifically for photovoltaic (solar) arrays. It safely combines multiple string inputs into a single output, isolating faults and preventing electrical fires. You get a reliable, code-compliant hub that simplifies maintenance and maximizes the uptime of your solar energy system.
Why choose this over a basic junction box? The robust build and integrated surge protection ensure your inverter is shielded from voltage spikes, while the clear labeling and modular breakers cut troubleshooting time from hours to minutes. It is the professional choice for commercial rooftops and utility-scale ground mounts.
Engineered for Solar DC Applications
- High-Voltage DC Rating: Handles up to 600V DC input, making it compatible with modern high-efficiency solar panels and string inverters. Benefit: reduces current loss and allows longer cable runs.
- IP54 Weatherproof Enclosure: The steel cabinet with a powder-coated finish resists rain, dust, and UV degradation. Benefit: reliable outdoor installation with a 20+ year service life.
- Modular DC Circuit Breakers: Each string is protected by an individual 250A breaker. Benefit: isolate a faulty panel string without shutting down the entire array.
- Type 2 Surge Protection Device (SPD): Built-in 40kA surge arrestors. Benefit: protects expensive inverters from lightning-induced transients.
Real Customer Feedback
“I installed this cabinet on a 150kW ground-mount project last quarter. The pre-wired busbars and DIN rail mounting saved us at least two hours of labor per unit compared to our old custom builds. The voltage drop readings are exactly as specified on the datasheet. My only critique: the door latches are stiff initially, but they loosen up after a few weeks of use.”
Technical Specifications
| Specification | Value |
|---|---|
| Max Input Voltage | 600V DC |
| Rated Current | 250A (Main Bus) |
| Number of Strings | 8 Inputs (1 Output) |
| Enclosure Material | Cold-Rolled Steel, 1.5mm thickness |
| Protection Rating | IP54 (Dust and Splash Resistant) |
| Surge Protection | Type 2, 40kA (20kA per mode) |
| Certifications | CE, TUV, UL 508A Listed |
| Operating Temperature | -25 Degrees Celsius to +55 Degrees Celsius |
| Dimensions (H x W x D) | 800 x 600 x 250 mm |
Comparison vs Standard Combiner Boxes
| Feature | This PV Switchgear Cabinet | Basic Field-Assembled Box |
|---|---|---|
| Surge Protection | Integrated Type 2 SPD | Often Omitted |
| Short Circuit Rating | 10kA SCCR | Unknown / Low |
| Wiring Termination | Finger-Safe Busbars | Exposed Lugs |
| Warranty | 5-Year Standard | 1-Year Limited |
FAQ
Can this cabinet be used for both positive and negative grounding?
Yes. The busbars are fully isolated from the enclosure. You can float the system or use a negative-ground reference per NEC requirements. The included ground lug is rated for 8 AWG copper wire.
What is the maximum wire size for the string inputs?
Each input terminal accepts 14 AWG to 2 AWG copper conductors. We recommend using 10 AWG PV wire for typical 15A string currents to minimize voltage drop.
Does it come with pre-drilled conduit knockouts?
Yes. There are four 1-inch knockouts on the bottom and two on the side. This allows flexible conduit entry from any direction during installation. Use watertight conduit fittings to maintain the IP54 rating.
Is a disconnect switch required before this cabinet?
No. The main input breaker inside this cabinet acts as the load break disconnect for the inverter side. However, local AHJ codes may require a separate lockable disconnect if the cabinet is not within sight of the inverter.
