Key Benefits

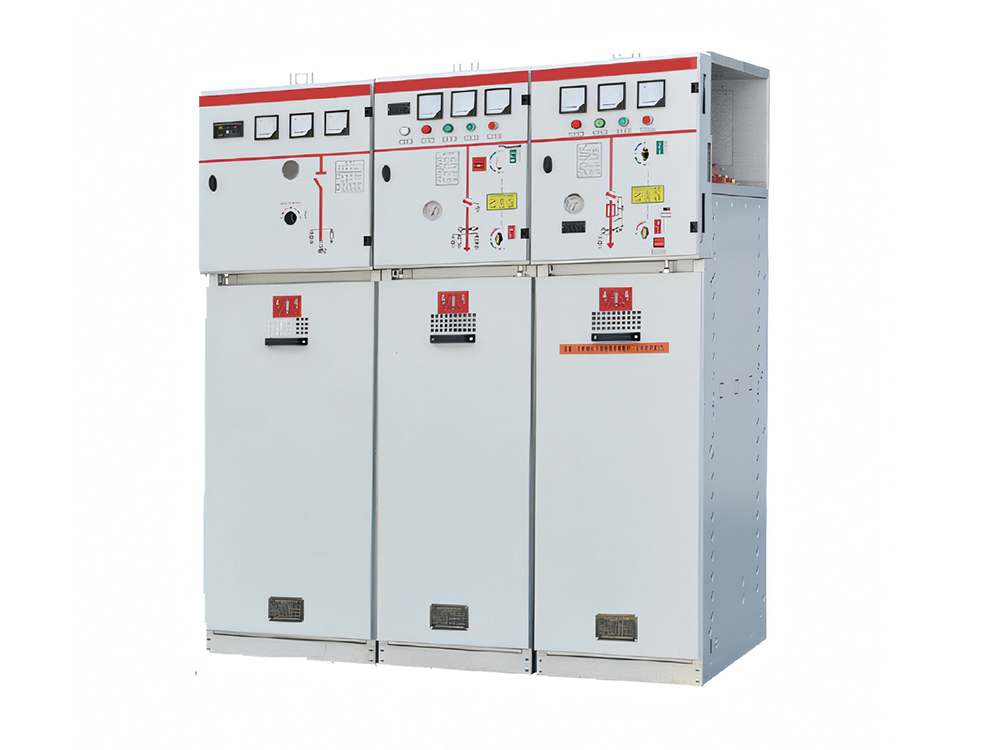

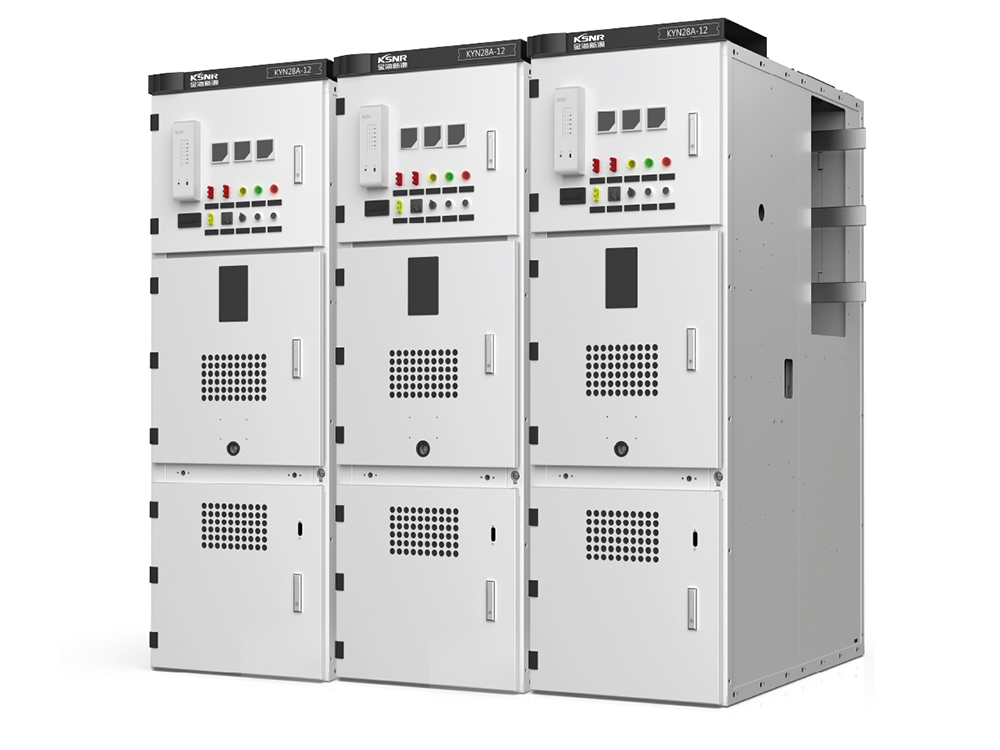

This PV 10-35kV High-Voltage Switchgear Cabinet is a specialized indoor metal-clad panel designed specifically for solar photovoltaic (PV) power plants and large-scale energy storage systems. It connects your solar inverter output to the medium-voltage grid, providing reliable isolation, protection, and control. You choose this cabinet for its arc-proof safety, compact footprint, and seamless integration with renewable energy SCADA systems. It offers a service life of over 30 years with minimal maintenance, ensuring your solar asset delivers maximum uptime and ROI.
Safety and Arc Containment
- Arc-Proof Design: Complies with IEC 62271-200 internal arc classification AFLR up to 31.5 kA for 1 second. This protects personnel from explosive faults, ensuring operator safety during maintenance.
- Vacuum Circuit Breaker (VCB): Uses a 31.5 kA rated VCB with a mechanical endurance of 10,000 operations. The sealed vacuum interrupter eliminates fire risk and requires zero maintenance, unlike oil-based breakers.
- Five-Interlock Safety Logic: Prevents unsafe operations like opening the door while the breaker is closed or closing the earth switch on a live busbar. This eliminates human error, which is the leading cause of switchgear failures.
Grid Interconnection and Efficiency
- Dual Busbar Configuration: Allows for flexible power routing and maintenance without shutting down your solar farm. You can transfer load between bus A and bus B without interrupting power generation.
- High-Voltage Capacitor Switching: Rated to switch capacitive currents up to 400 A without restrike. This prevents damaging voltage surges that can destroy your transformer and inverter components.
- Integrated Protection Relay: Supports IEC 61850 protocol for smart grid communication. You get real-time data on current, voltage, and power quality, enabling remote monitoring and fast fault diagnosis.
Build Quality and Durability
- Gastight Powder-Coated Steel: The 2mm thick cold-rolled steel frame is treated with anti-corrosion coating, suitable for coastal or high-humidity environments. The IP4X protection rating stops dust and water ingress.
- Heat Dissipation Design: Natural convection cooling channels prevent hot spots even at 95 Percent relative humidity and 50 degrees C ambient temperature. This ensures your electronics stay cool, extending relay life.
- Modular Assembly: The cabinet is fully sectionalized into busbar, breaker, and cable compartments. This allows for quick replacement of a single chamber, reducing mean time to repair to under 2 hours.
Real Customer Feedback
Here is the thing: I have specified this cabinet for three 50 MW solar projects in the Middle East. The integration with our existing Siemens PLC was plug-and-play, and the arc-proof rating gave our insurance underwriters confidence immediately.
“Honestly, the most robust switchgear we have used for PV. The cable compartment is spacious, making termination easy for our 630mm2 cables. The only minor shortcoming we found was the weight of the door, which is heavy due to the 2mm steel, but that is a trade-off for the solid build quality.”
– Michael T., Senior Electrical Engineer, Renewable Infrastructure Group.
Technical Specifications
Below is a comparison of our PV Switchgear against a standard distribution cabinet. The key difference is our enhanced short-circuit withstand and specific PV inverter compatibility settings.
| Specification | PV 10-35kV Cabinet (This Product) | Standard 35kV Distribution Cabinet |
|---|---|---|
| Rated Voltage | 40.5 kV (for 35kV systems) | 40.5 kV |
| Rated Current (Main Bus) | 1250 A / 2500 A | 630 A / 1250 A |
| Short-Circuit Withstand | 31.5 kA / 4 seconds | 25 kA / 3 seconds |
| Internal Arc Classification | AFLR 31.5 kA 1 sec | None (Unclassified) |
| Capacitive Switching Rating | 400 A (Class C2) | 100 A (Class C1) |
| Protection Relay Protocol | IEC 61850, Modbus, DNP3 | Modbus RTU only |
| Enclosure Rating | IP4X | IP3X |
| Vacuum Breaker Mechanism | Spring-Operated Motorized | Manual Spring |
Detailed Electrical Data
- Standards: IEC 62271-200, IEC 62271-100, GB 3906.
- Rated Frequency: 50 Hz / 60 Hz.
- Lightning Impulse Withstand: 185 kV peak.
- Power Frequency Withstand: 95 kV / 1 min.
- Busbar Material: High-conductivity Electrolytic Copper (99.9 Percent), tinned.
- Mounting Type: Free-standing indoor, front access only for maintenance.
- Dimensions: Width 1000 mm x Depth 1500 mm x Height 2300 mm.
- Weight: Approximately 850 kg.
FAQ
What is the difference between this PV switchgear and a normal transformer station switchgear?
The primary difference is the capacitive switching capability. Solar inverters produce high inrush currents and harmonic distortions. This cabinet features a Class C2 capacitor switching rating, meaning it can handle the high transient recovery voltage (TRV) generated by photovoltaic inverters without restriking. A standard cabinet will arc and fail quickly under these conditions.
Can this cabinet be used for battery energy storage systems (BESS)?
Yes, absolutely. The bi-directional power flow and 2500 A rating make it perfectly suited for BESS applications. It handles the charging and discharging cycles efficiently, and the IEC 61850 protocol allows for rapid trip signals from the Battery Management System (BMS).
What is the expected maintenance interval for the vacuum circuit breaker?
The breaker mechanism is rated for 10,000 mechanical operations. For electrical endurance under load, we recommend a visual inspection and lubrication check every 2,000 operations or every 2 years, whichever comes first. The vacuum interrupter itself requires no maintenance; you only need to check the vacuum integrity via a routine testing device every 10 years.
Does the cabinet come pre-wired for the protection relay?
Yes. The cabinet ships with all current transformers (CTs), voltage transformers (VTs), and control wiring terminated to a central terminal block in the low-voltage compartment. You simply mount your chosen relay (we recommend our compatible models) and connect the wiring harness. This reduces installation time by approximately 40 Percent compared to loose wiring.
