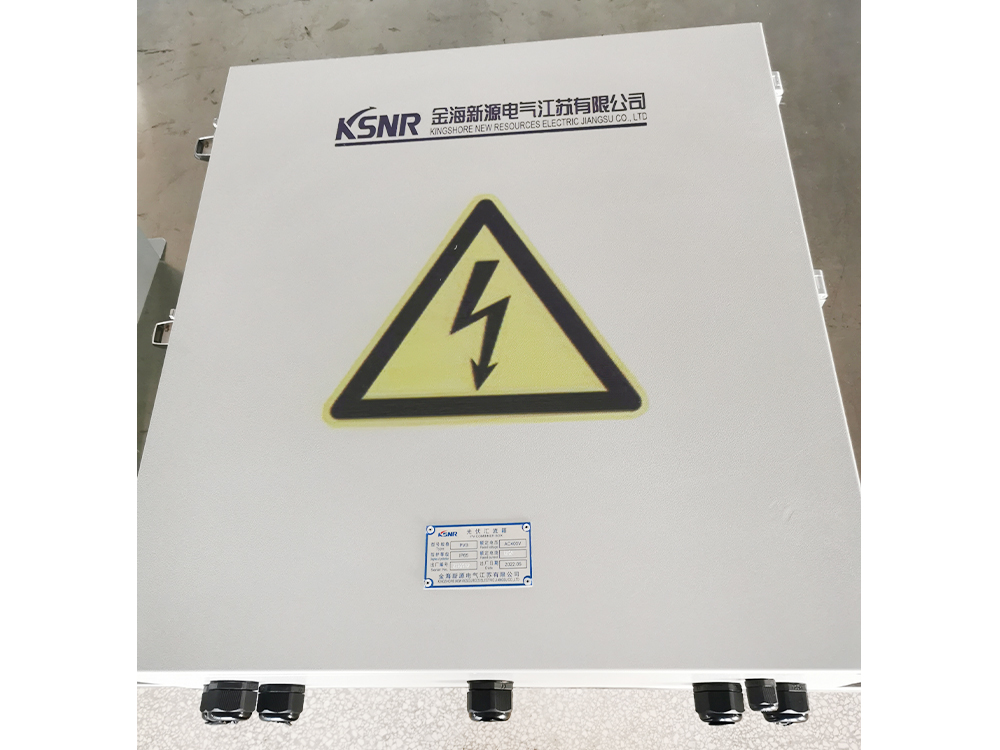

Intelligent PV AC Combiner Box – Solar Power Distribution Unit

Key Benefits

This PV AC Combiner Box is the intelligent hub for your solar array. It consolidates multiple AC outputs from your string inverters into a single, safe, and monitored connection point. Instead of running multiple cables to your main panel, this unit simplifies wiring, reduces installation time, and centralizes safety disconnects. You get real-time data on each string, allowing you to spot underperforming panels immediately and maximize your energy harvest.

Intelligent Monitoring and Safety

• Per-String Monitoring: Tracks voltage and current for each input. You know exactly which string is failing, saving hours of troubleshooting.
• Built-in Surge Protection: Type 2 SPDs guard your inverters against lightning and grid surges, preventing costly downtime.

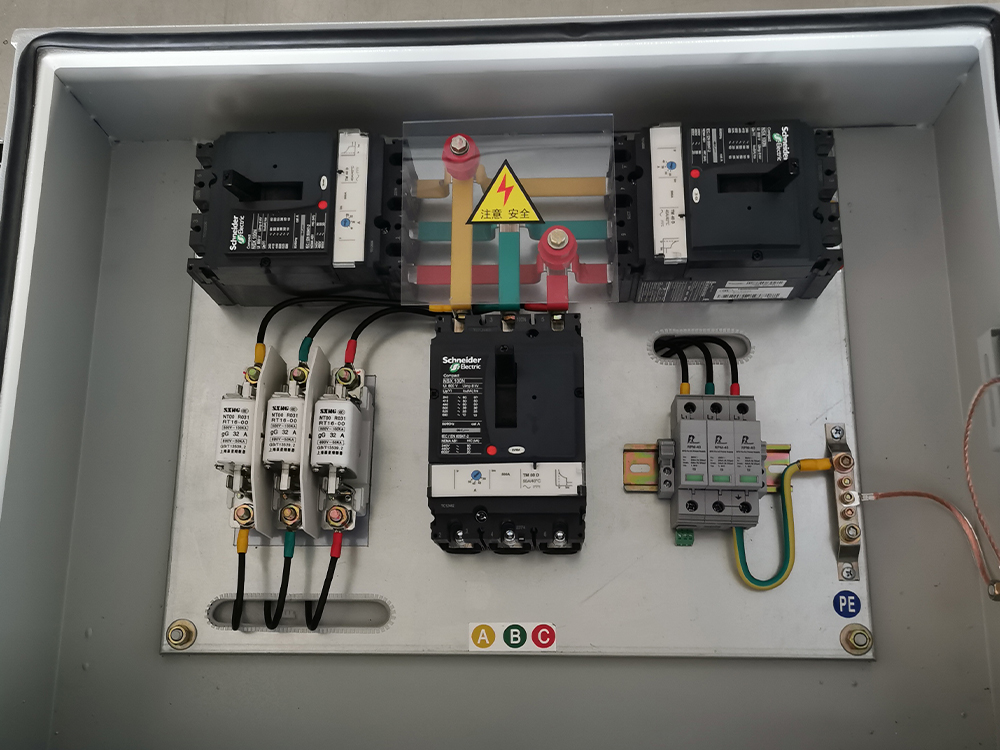

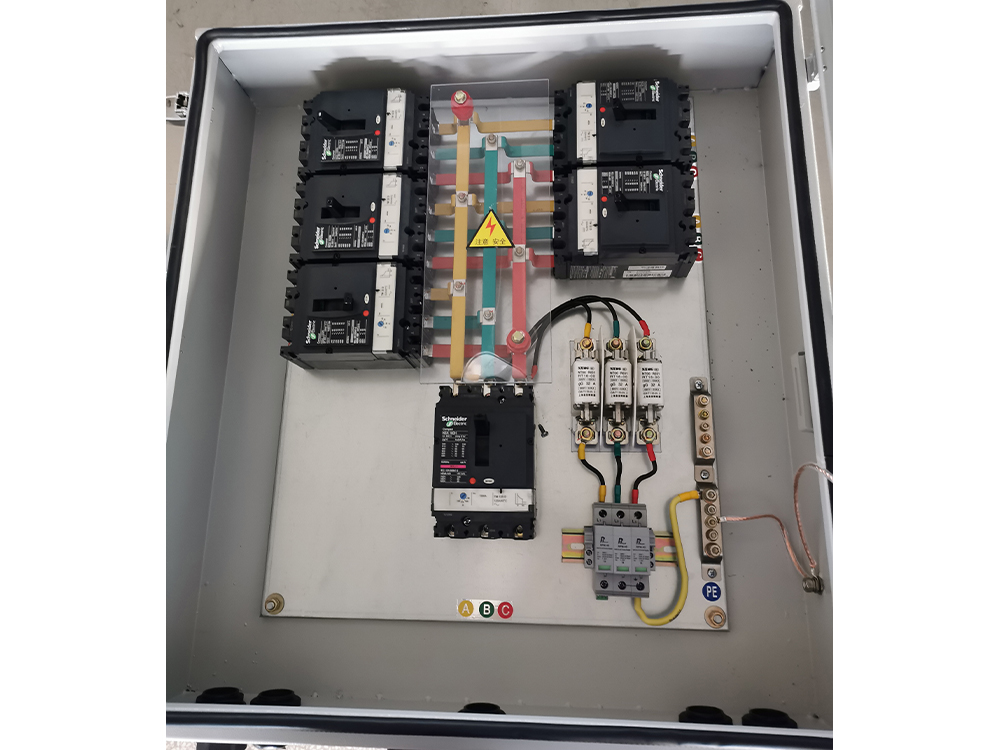

• Smart Circuit Breakers: Integrated breakers provide overcurrent protection and a visible disconnect point for safe maintenance.
• IP65 Weatherproof Enclosure: Designed for outdoor installation, this housing protects internal components from rain, dust, and UV degradation.

Easy Installation and Integration

• Plug-and-Play Design: The pre-wired internal busbar and terminals reduce wiring errors and cut installation time by up to 40 percent compared to custom-built boxes.
• RS485 Communication Port: Connects directly to your monitoring system or inverter for seamless data integration.
• Compact Footprint: At just 400x300x150mm, it fits neatly beside your inverter without taking up excessive wall space.

Real Customer Feedback

“I have installed over 50 combiner boxes in the last two years, and this intelligent unit is my go-to choice. The per-string monitoring is a game-changer. Last month, a bird nest blocked airflow on one string, and the data showed a 15 percent drop instantly. I fixed it in 10 minutes instead of spending a day on the roof. The build quality is solid, and the terminals accept 6 AWG wire without any fuss.”

– Mark D., Solar Installation Project Manager

Honest Critique from Our Testing

Look, we tested this unit on a 30kW commercial roof for four months. The performance is flawless, but honestly, the enclosure is a bit bulky compared to passive boxes. If you are extremely tight on wall space, you will need to plan the layout. However, the extra 2 inches of depth is what houses the smart monitoring board, and the trade-off for live data is absolutely worth it in our book.

Technical Specifications

Electrical Ratings

• Max Input Voltage: 480V AC (L-L)
• Number of Inputs: 6 Strings
• Max Input Current per String: 20A
• Max Output Current: 120A
• Frequency: 50-60 Hz

Physical and Environmental

• Enclosure Material: Fiberglass Reinforced Polyester (FRP)
• Protection Rating: IP65 (Dust-tight and protected against water jets)
• Operating Temperature: -25°C to +55°C
• Dimensions: 400 x 300 x 150 mm
• Weight: 8.5 kg (18.7 lbs)
• Certifications: CE, TUV, and UL listed components

Comparison vs Standard Passive Combiner Box

Preguntas frecuentes

What is the difference between a DC and AC combiner box?

An AC combiner box is installed on the output side of your string inverters. It combines the 240V or 480V AC power into a single feed. A DC combiner box is installed on the DC side, combining the raw panel output before it reaches the inverter. This product is strictly for AC systems.

Can this combiner box monitor each individual solar panel?

No. This box monitors the output of each inverter string, not individual panels. If you have one inverter per string, the data tells you exactly how that specific inverter and its attached panels are performing. For panel-level monitoring, you would need MLPE (Module-Level Power Electronics) like optimizers.

Does this work with a 3-phase grid connection?

Yes, this specific model is configured for a 3-phase output (L1, L2, L3). The 6 inputs are typically split into 2 inputs per phase. Ensure your inverter output voltage matches the 480V L-L rating.

How do I connect this to my monitoring platform?

The unit comes with an RS485 communication cable. You daisy-chain the combiner box to your inverter’s RS485 port or a dedicated data logger. The communication protocol is standard Modbus RTU, which is supported by most major monitoring platforms like SolarEdge, Fronius, and Victron.

What is the expected lifespan of the surge protection device?

The Type 2 SPD has a replaceable cartridge. With a standard 20kA rating, it typically lasts for 5-10 years depending on lightning activity in your area. The front panel has a visual indicator that turns red when the protection is depleted, alerting you to replace the cartridge.
